Re-define Industrial Power with Innovative Technology

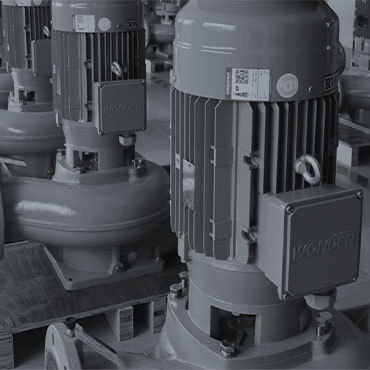

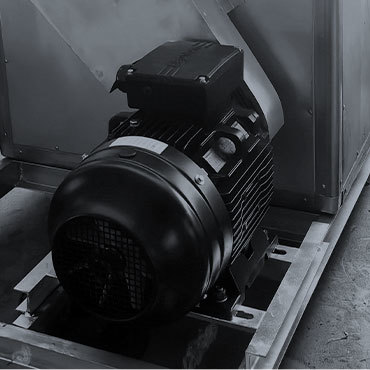

Welcome to your ultimate destination for high-efficiency and smart motors and control system. These products inject sustained kinetic energy into equipment such as water pumps, fans, and air compressors. With superior performance, safety, reliability, and deep customization capabilities, we help global customers reduce operating costs and accelerate their green transformation!
In-depth understanding of the general machinery industry
Have a clear understanding of our target customer groups, be familiar with the operating principles, market demands, and development trends of various mechanical equipment in the industry.
Excellent Performance: Intelligent Precision, Safety without Worry
Intelligent and precise control with smart inverter
Ultra-long life guaranteed by lower temperature rise
All-round safety protection
Insulation System: Fearless of Harsh Environmental Challenges
Excellent insulation protection by advanced insulation materials
Multiple protection systems
Deep Customization: Your Exclusive Industrial Power Solution
Full-dimensional flexible customization
Scenario-based solution expert
Customization Capabilities
Item
Options
Frame size
Increased power at same frame size.
Pole
2, 4, 6, 8
Rated speed
On request
Voltage
Special voltage as required.
Frequency
50Hz. 60Hz. Variable frequency or as required.
Efficiency level
IE5-IE1 (IEC60034)
Smoke ventilation
200°C/2hrs, 250°C/2hrs, 300°C/2hrs, 400°C/2hrs
Vibration class
R, S
Protection class
IP55, IP56, IP65, IP66, IP67
Insulation class
F, H
Duty
S1-S9
Service factor
1.0, 1.15, 1.2, 1.25
Ambient temperature
'-40°C~60°C
High altitude
1000m-6000m
Anticorrosion
Up to C4H, suitable for tropicalization
Thermal protection
PTC, PTO, PT100
Bearings
Ball bearing. Roller bearing. Oversized bearing. Angular contact bearng, Insulated bearing. Insulated bearing housing. Insulated shaft.
DE/NDE bearing locked.
Heating band
As required
Shield
Cast iron shield for alminum motors
SPM hole
Shaft
Smooth shaft. Shaft with key slot. Special shaft dimension. Stainless steel shaft. Welded shaft.
Flange
Double flanges. Special size flanges.
Mounting arrangement
B3, B35, B5, B14, B34, V1
Painting
Non-standard color. Non-standard painting thickness.
Cooling method
IC411, IC416, IC410, IC418 or as required.
Other mechanical components
Auxiliary terminal box
Rain cover
Stainless steel lifting lugs and fasteners
Aluminum or cast iron fan
Bronze drain plugs
Extended cable lead
Report
Type testing report
Certificates
On request
