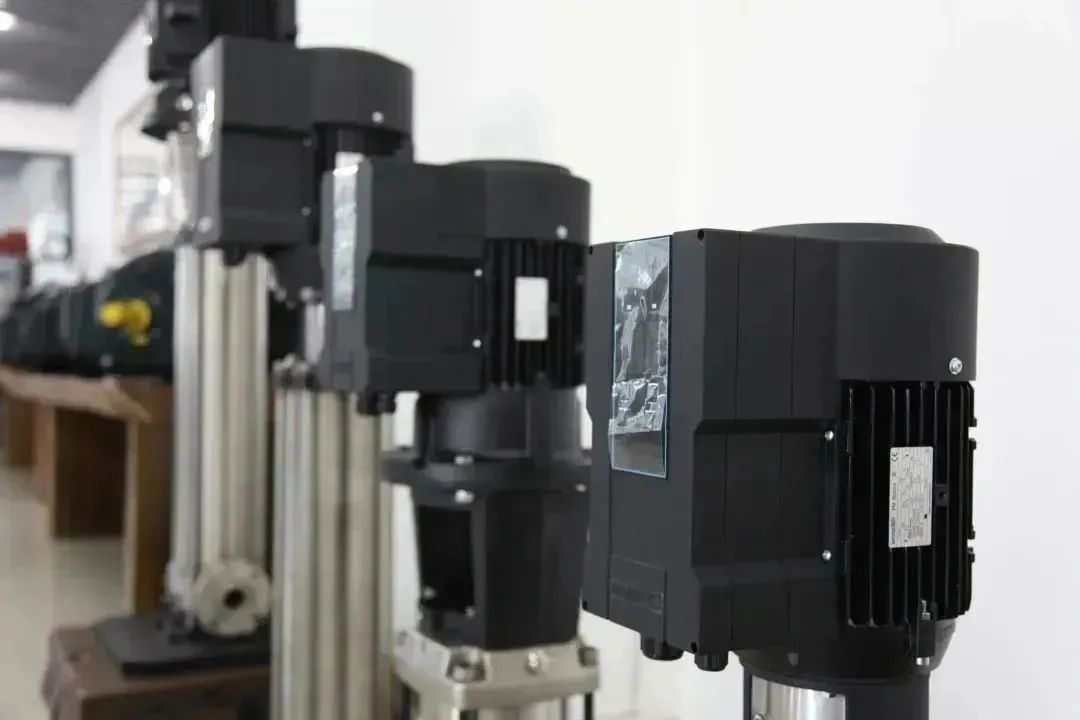

WSTF series is a new integrated motor designed by Wonder, which combines a highly efficient permanent synchronous motor with an integrated driver. The motor performance conforms to IEC TS 60034-30-2 ED.1,2016-12. Wonder inverter-integrated PM motors are suitable for longtime running and fluctuating load conditions such as water pumps, fans, fluid machinery, etc.

Technical Characteristics

• Operating speed: 0~3000rpm (MAX:3600rpm)

• Carrier frequency: 8~15kHz

• Power range: 0.75-22kW

• Input voltage :AC 3PH 380~440V (±10%)

50/60Hz (±5%)

• Control mode: sensorless vector control

• Communication/bus: dual RS485 (1 road machine control,1 multi-machine linkage)

• Electrical protection function: over current, over voltage, under voltage, overload, phase loss, overheating, short circuit protection, etc

• Pump protection function: high and low water pressure protection, water shortage protection, antifreeze protection, water shortage reset, burst tube detection, etc

• Operating temperature: -20℃~40℃

• Storage temperature: -25℃~70℃

• Humidity: 5~80%, no condensation and no frost

• Protection level: IP55

product feature

Integrated simple design

• Integrated design of motor and inverter: compact electrical structure, high reliability, easy installation and maintenance, local operation and control.

• Independent cooling duct: inverter and motor unified heat dissipation, independent air duct design, the inverter does not need to add additional fans, effectively reducing noise.

Excellent performance

• Silence: built-in intelligent vibration observation model, dynamic identification of system resonance frequency, automatic planning of frequency converter operating interval, effectively avoiding the system resonance caused by noise pollution and mechanical damage.

• Smooth operation without fluctuations: the combination of patented beat suppression technology and highly reliable film capacitor design reduces torque pulsation, ensures stable operation of the system, extends product life, and reduces the size of the whole machine.

Reliable reliability and protection

• Scientific layout and excellent manufacturing process: strict selection of high-quality components, scientific modular layout, IP55 high protection level design.

• Multiple protection: with comprehensive overcurrent, overvoltage, undervoltage, overload, phase loss, overheating, and short circuit protection capabilities to ensure the safe operation of products.

Specially optimized design for pump applications

• High efficiency and energy-saving control strategy: advanced vector control algorithm and energy-saving hibernation strategy are adopted, and the overall efficiency reaches the national level of energy efficiency.

• Water supply special function: built-in efficient constant pressure control, multi-intelligent energy level link control function, with high and low water pressure protection, water shortage protection, anti-freeze protection, water shortage reset, burst pipe detection, and other complete water supply system special protection capabilities.
